Every industry emits. We make sure it’s clean when it leaves — and prove it.
Lechler designs bespoke wet scrubber installations that capture harmful gas emissions before they reach the atmosphere, paired with precision analysers that continuously measure and verify what’s released — proven across chemical, maritime, and heavy industry.
What we do
Complete installations for clean process emissions
We design, build and install wet gas scrubbers for industrial gas streams, together with the analysers that control them. Engineering, workshop and service all sit in one company.

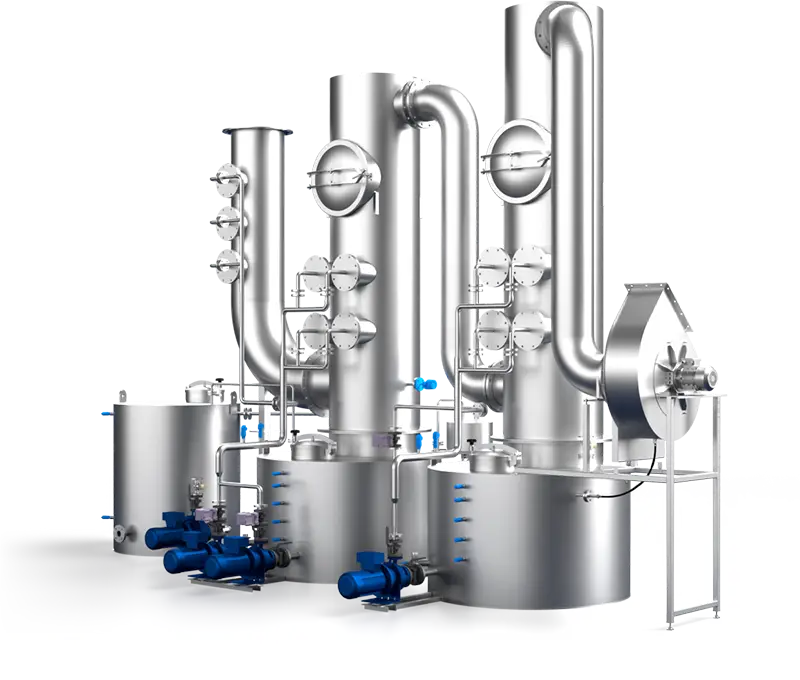

Wet gas scrubbers

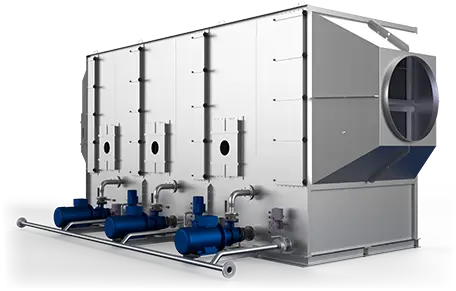

Vertical columns and horizontal counter-current scrubbers, single- or multi-stage, in PP, PE, PVDF, GRP or stainless steel. Learn more
Engineering & design
Process design, 3D models in Autodesk Inventor with stress analysis, and electrical design in Eplan. Learn more
Workshop & panel building
Welding, assembly and control cabinets built and tested in our own workshops, with a factory acceptance test if you want one. Learn more
Gas analysers & monitoring
Process analysers that control the installation and verify emissions, maintained and calibrated by our own service engineers. Learn moreIndustries
Where our scrubbers run
A selection of the twelve industries we work for. Every photo shows one of our own installations in that sector.
Featured solution

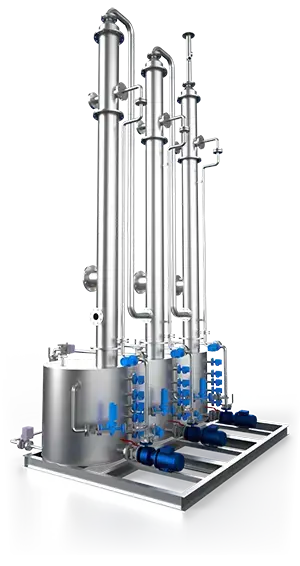

The vertical scrubber
A column in which the gas is washed by a counter-current spray system. The gas enters at the bottom through a half-pipe inlet for an even, laminar flow, and the washing liquid is sprayed through non-clogging full cone nozzles.
- Counter-current spray, single- or multi-stage
- Built in plastic (PP, PE, PVDF, GRP) or stainless steel
- Supplied with pumps, instrumentation, control cabinet and PLC
- Process analysers for control and verification
- Factory test in our workshop, commissioning and training on site
Our approach
From first analysis to clean emissions
One team takes your project from the first conversation about your process to service after start-up.
-
01
Analyse
Your process, the pollutants, the gas flow and its particle or chemical load.
-
02
Engineer
Process design, 3D model, stress analysis and the electrical design.
-
03
Build
Welding, assembly, panel building and PLC programming in our own workshops.
-
04
Install
Assembly on site, commissioning together with you and training for your operators.
-
05
Support
Maintenance, analyser calibration and remote monitoring if you want it.
References
Proven in real installations
Every project below is a scrubber we designed and built. Each reference page lists the process conditions.

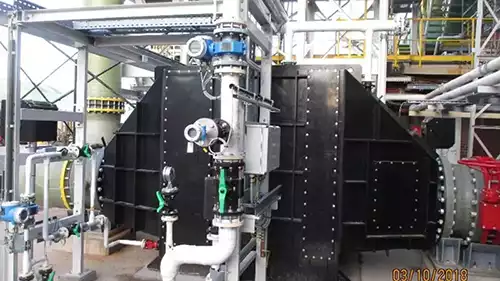

Acid scrubber for a fertilizer plant
- Gas flow
- 24,000 Nm³/h (dry)
- Material
- HDPE
- Removes
- Cl₂, Br₂, HCl, HBr, SO₂ and SO₃

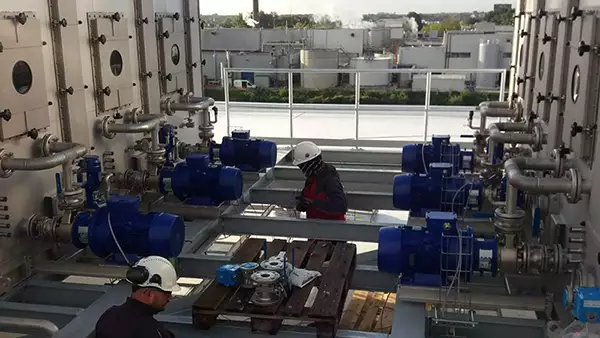

NH3 scrubber for ammonia and VOC removal
- Gas flow
- 20,000–50,000 Am³/h
- Material
- AISI 316L
- Removes
- Ammonia, VOC and odor, in three washing sections

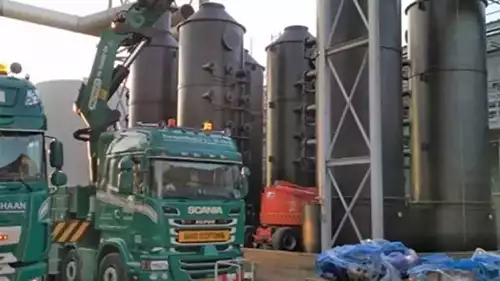

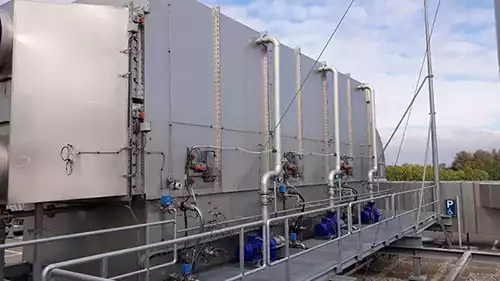

Odor scrubber for offal processing
- Gas flow
- 23,000 Nm³/h
- Design
- Open-spray quench, stainless steel
- Removes
- Odor from offal processing

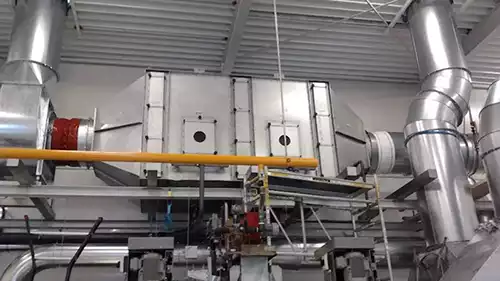

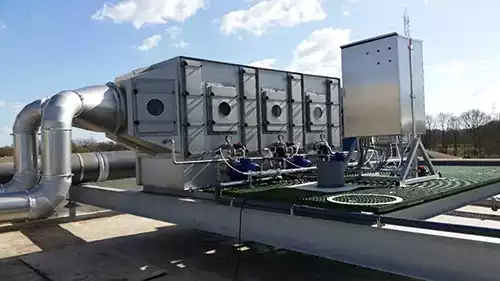

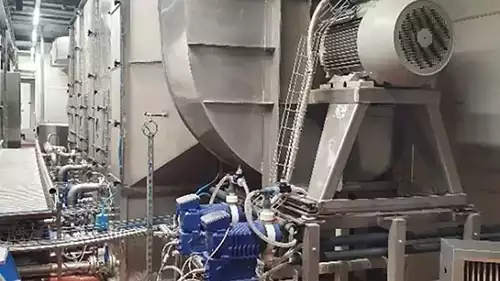

Odor scrubber for roasting ovens
- Gas flow
- 40,000 Am³/h nominal
- Material
- AISI 316L
- Removes
- Odor from roasting ovens, counter-current washing

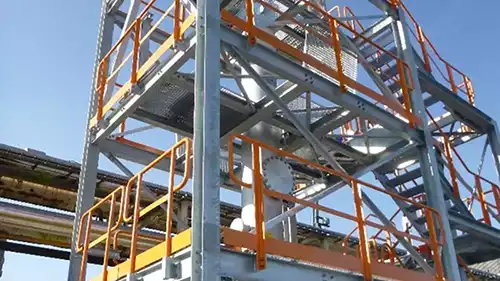

Naphtha scrubber for vapor recovery
- Gas flow
- 80 Nm³/h
- Material
- AISI 316L
- Removes
- Benzene vapor from loading in a tank park

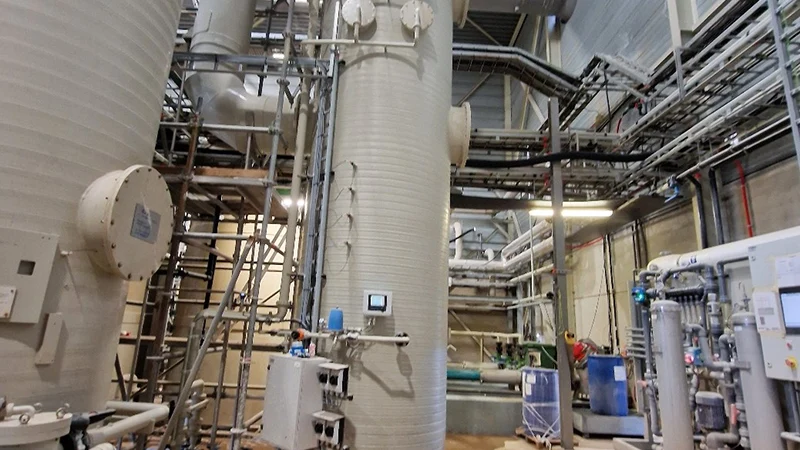

Green ammonia stripping system
- Gas flow
- 16,000 Am³/h
- Temperature
- 70 °C
- Removes
- Ammonia from a liquid flow, closed-loop stripping and scrubbing
Knowledge
Knowledge that supports your project
Not ready to talk yet? Start with our whitepaper, the guide to scrubber constructions or the full project matrix.
The game-changing benefits of scrubbers
Free download, sent to you after a short form.
Request the whitepaper
Understanding scrubber constructions
Vane separators, wire mesh demisters, open spray systems and nozzle types compared.
Read the guide
All completed projects
Sorted by industry, process and emission type, with the scrubber type and analysers used.
Explore the matrix
A new chapter
The same commitment, now within the Lechler Group
After many years of activity in Brielle in analytical technology and gas scrubber systems, these solutions are now offered by Lechler Process Technology B.V., a newly established and independent company that is part of the Lechler Group.
Read moreContact
Get in touch with our scrubber specialist
Our specialist is ready to guide you towards efficiency, productivity, and environmental compliance. Connect with us now for expert advice, custom solutions, and quick responses.
